Sputtering Target Bonding Service

Bonding Service Supplier in China

Indium bonding is the best method for bonding sputtering targets because it has the best thermal conductivity and is the most efficient at drawing heat away from the target. For special target materials, elastomer bonding or e-beam welding is required by the customer.

We have abundant target bonding experience for both metallic target materials and compound target materials, and we suggest the best bonding solution to customers according to the material's properties and working conditions.

Enter your inquiry details, We will reply you in 24 hours

Submit Request

Bonding Service

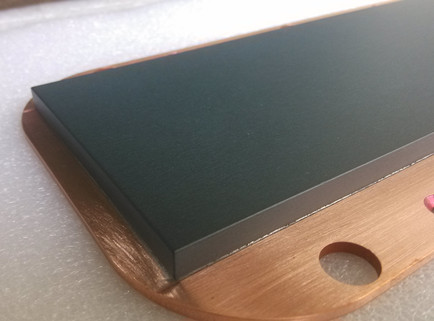

For fragile and soft materials especially ceramic sputtering targets and soft metals sputtering targets, customer usually require to bond the target with backing plate. Because the bonding is not only a support to the targets materials, but also provide heat extraction(cooling) from sputtering process, as well as sealing from magnetron cooling system and vacuum chamber.

Indium bonding is the best method for bonding sputtering targets because it has the best thermal conductivity and is the most efficient at drawing heat away from the target. For special target materials , elastomer bonding or e-beam welding is required by customer.

We have abundant target bonding experience for both metallic target materials and compound target materials, and we suggest the best bonding solution to customer according to the materials properties and working condition.

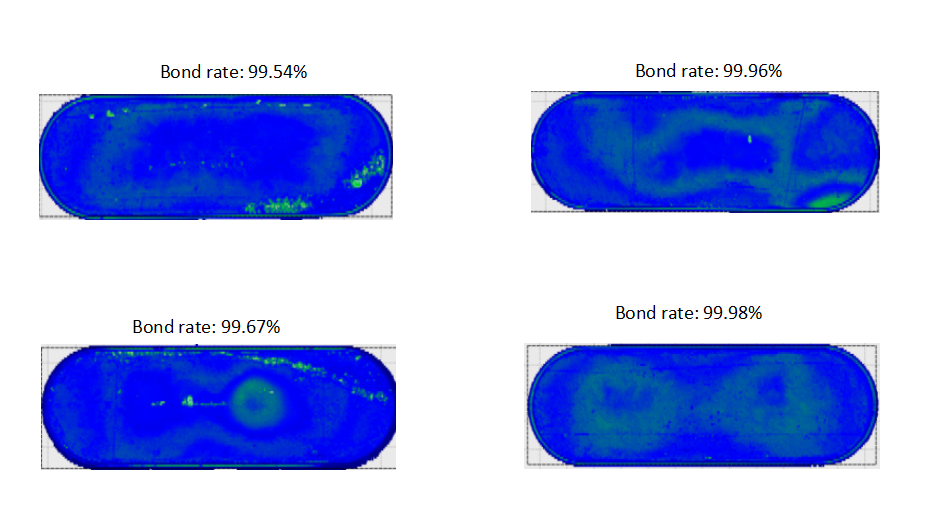

For indium bonding, the thickness of indium we controlled is 0.2-0.3mm, and we leave 0.2-0.3mm bonding gap between target tiles, and 95% bonding rate can be guaranteed form most targets bonding. C-scan report is available upon request.

We also customize backing plates according to customer request, pls contact us if you need it.

Selection of Backing Plate materials where the following factors must be considered:

Thermal Expansion of the Backing plate materials and Sputtering target.

➣ Electrical Conductivity

➣ Mechanical Properties to withstand the cooling water pressure and thermal cycling effect.

➣ Reusable

Backing plate materials commonly are made of by follow metals:

▶ Oxygen Free Copper

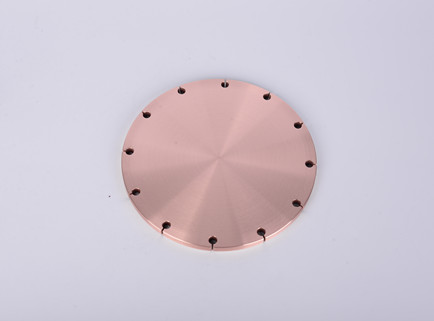

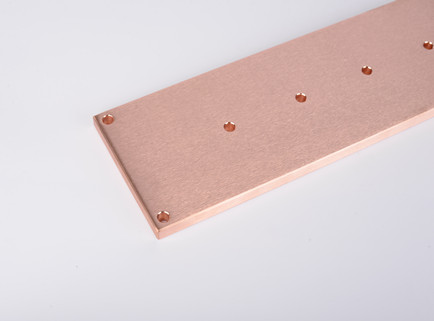

The most commonly backing materials is is Oxygen Free Copper (OFHC) .This is readily available metal has good thermal conductivity and electrical conductivity, while also being easy to machine. Copper backing plates can be re-used, with care, twenty times or more.

▶ Molybdenum Backing Plate

Molybdenum Backing Plate is suitable for high temperature bond , while copper may also oxidize badly or warp, and also matching with target materials where copper coefficient of expansion is mismatched, such as ceramics.

▶ Aluminium Backing plate

Similarly for high thermal conductivity and matching to the target materials coefficient of expansion as well as suitable for diffusion bonding.
Stainless steel. Commonly used for Rotatable sputtering target where it provide a low cost recyclable backing tube.

Moreover, copper zinc (CuZn) alloy and copper chromium (CuCr) alloy backing plate are also available in our plant.
